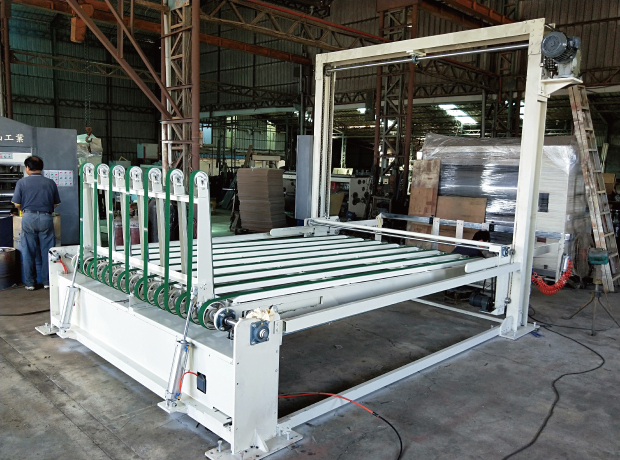

AUTOMATIC PAPER STACKER

The expansion bracket can be kept at a simultaneous position.
Retaining plate switch is designed for both manual and automatic operation.
The paper stacks can be automatically induced to rise through “electric eye”, the interval time and induction time can be adjusted at one's disposal.
Conveyor belt are all made of imported Belt.

Model	HS-S
Max. Paper Length	3000mm
Min. Paper Width	300mm
Max. Paper Width	1820mm
Max. Stack Height	1800mm (From the ground)
Total power	7.5 HP
Machine Weight	2.2 Ton

※Available for customerized design.
